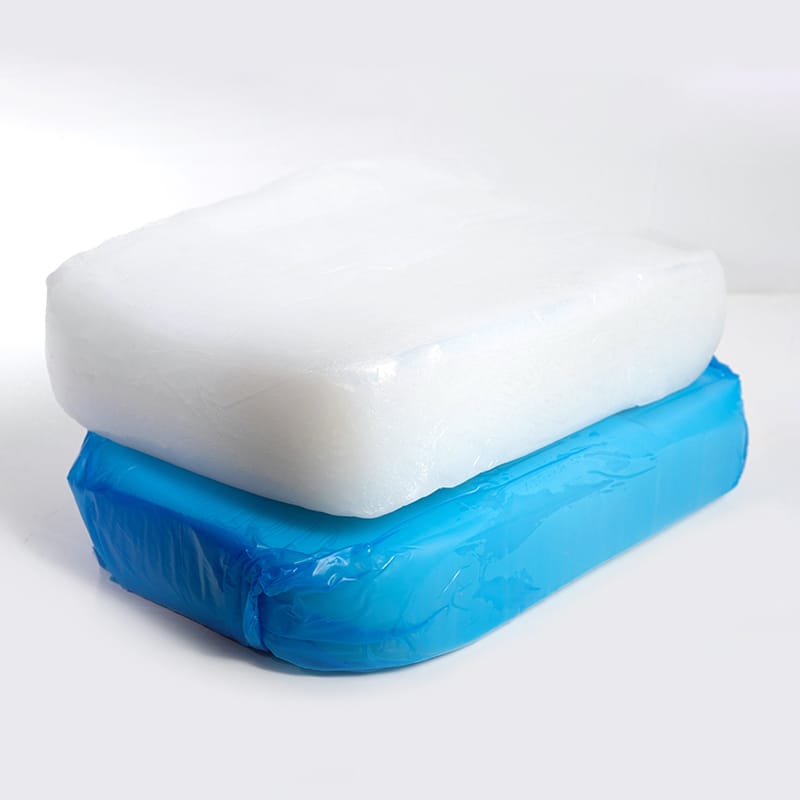

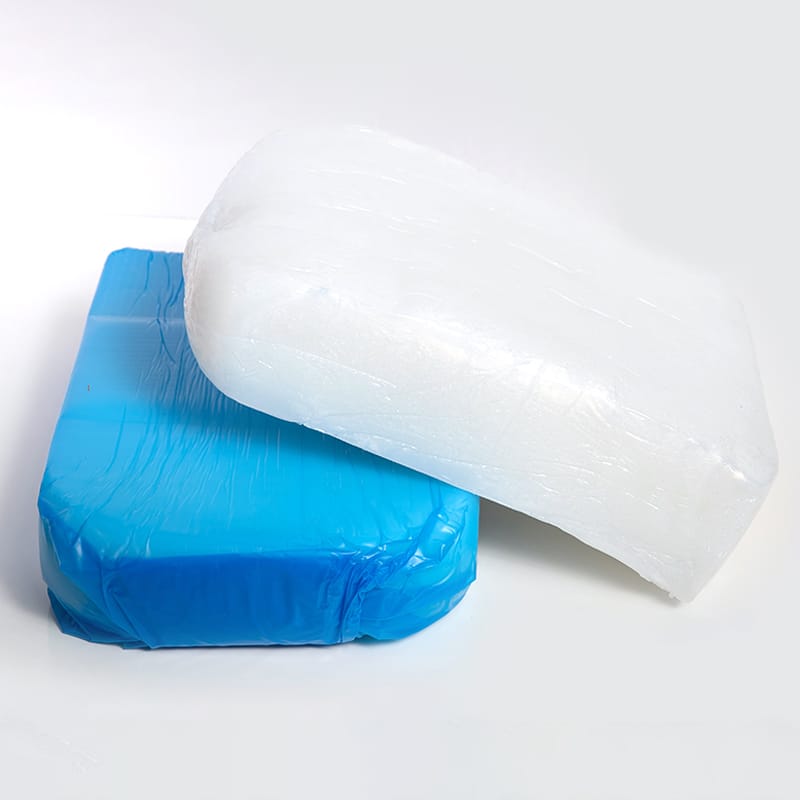

TrueHTV silicone
The Silicone Fume Silica grade EXXP Series products are two-part,
platinum catalyzed silicone rubber compound formulated to provide high transparent
and good result when making extrusion or molding parts.
The typical applications include rubber part for electronic, medical parts, bakeware,
healthcare & kids products and food transfer pathway.
Details
Typical Properties and Cured Conditions
Typical Properties
| Property | E30P | E40P | E50P | E60P | E70P |
| Appearance | Transparent | Transparent | Transparent | Transparent | Transparent |
| S.G. at 25℃ | 1.1 | 1.13 | 1.15 | 1.17 | 1.2 |
| T10, 165℃ (second) | 8 | 11 | 11 | 11 | 11 |
| T90, 165℃ (second) | 30 | 40 | 40 | 50 | 60 |
| Hardness (shore A, JIS) | 30 | 40 | 50 | 60 | 70 |
| Tear strength (Die B) (kgf/cm) | 20 | 25 | 25 | 30 | 30 |
| Tensile strength (kgf/cm²) | 80 | 80 | 80 | 85 | 80 |
| Liner shrinkage | 3.3 | 3.0 | 2.8 | 2.7 | 2.5 |
| Elongation | 900 | 850 | 700 | 600 | 500 |
| Plasticity | 170 | 190 | 210 | 240 | 280 |
Cured Conditions
| Process | Condition |
| Press cure | 165℃ / 10 mins |
| Post cure | 200℃ / 2 hrs / 4 hrs |
